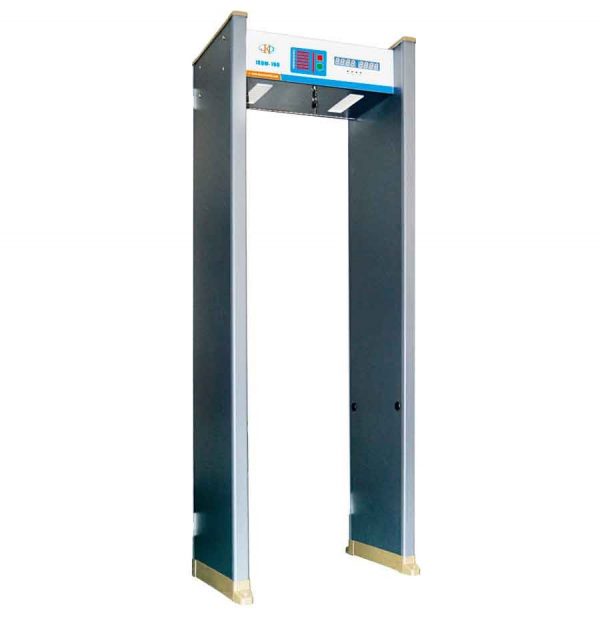

JKDM-200 6 Zone Walk Through Metal Detector

JKDM-200 6 Zone Walk Through Metal Detector is economical, practical, and cheap, mainly match moderate detection requirement places such as night-clubs or entertainment locations. With body height detection design and built-in electromagnetic fields, metal items carried by humans can be generated through the alarm device, items like various control tools, weapons, metal products, electronic products, and other items containing metal and so on, as an effective anti-theft examination tool.

Feature:

1. Six interlaced detection regions of the same high with the body and combining,

2. LED alarm light on column, displaying the area of metal detected accurately.

3. Four pairs of infrared emission and the receiver to prevent detection blind spot.

4. 100% Ferrous & non-ferrous metal detect.

5. With aluminum alloy binding tape, up to 99% non-condensing

6. Using microprocessor digital control technology, anti-interference ability,

7. Each region has 100 adjustable sensitivity, in accordance with the requirements in the 0-99 arbitrary regulation, and gets rid of the interference of belt, zippers and other objects.

8. Pass-through number and the alarm frequency can be counted automatically.

9. Can be used independently, or several detection doors network (minimum spacing of up to 40CM)to meet the flow requirements of pass-through.

10. Password protection function: A to prevent non-authorized personnel to amend the parameters.

11. Assembled structure: easy installation. User-friendly diagnostics identify fault condition,

12. Standard: GB 15210-1994. Through type metal detector door general technical conditions national standards Basic safety, meeting the requirements of GB4793.and program to be store in nonvolatile memory. Comply with IP2(60529). Personal safety: Satisfied NILECJ-0601.

13. EMC electromagnetic radiation in line with the standards: comply EN60950,no harm to the wearers of heart pacemakers, pregnant women, film and magnetic recording materials.

Specifications:

• Alarm way: Audio Alert, and LED Location lamp work at same time.
• Detection Zone: 6 zone
• Display ways: 8 status led display
• Sensitivity: 0-99 adjustable
• Tunnel Size: 200(L)*68(W)*56(H)cm
• Dimension: 222(L)*80(W)*67(H)cm
• Net Weight: 51.5kg/set Gross Weight:71kg/set
• Package Size: Main Body: 230*72*25cm(2 piece /carton)
• Host Machine: 78*47*28cm(1 piece/carton)
