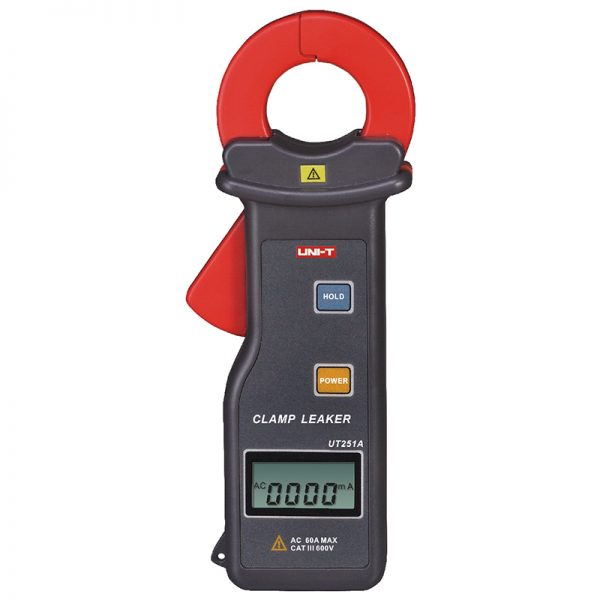

UT251A High Sensitivity Leakage Current Clamp Meter

UT251 series high-accuracy high sensitivity leakage current clamp meters are designed for testing AC leakage current. These high resolution meters are great for applications such as checking leakage current for motor, home appliances and other electrical equipment up to 600A.

Applications:
checking leakage current for motor, home appliances and other electrical equipment up to 600A.
Features:

1. 4-digit LCD digital display, 10000 display count

2. Auto range, 2/s sampling rate
3. Peaks hold
4. Store 99 sets of data
5. RS-232 interface
6. Data hold
7. Auto power off
8. Overload indication, low battery indication

  • UT251A High Sensitivity Leakage Current Clamp Meter

    Request a Call Back

    •   Size Guide

      Size Guide

        SizeChestWaistHips
        XS342834
        S363036
        M383238
        L403440
        XL423642
        2XL443844

        All measurements are in INCHES

        and may vary a half inch in either direction.

        SizeChestWaistHips
        2XS322632
        XS342834
        S363036
        M383238
        L403440
        XL423642

        All measurements are in INCHES

        and may vary a half inch in either direction.

        SizeChestWaistHips
        XS342834
        S363036
        M383238
        L403440
        XL423642
        2XL443844

        All measurements are in INCHES

        and may vary a half inch in either direction.

      •  Delivery & Return

        Delivery

        We ship to all 50 states, Washington DC.
        All orders are shipped with a UPS tracking number.
        Always free shipping for orders over US $200.
        During sale periods and promotions the delivery time may be longer than normal.

        Return

        Elessi will accept exchanges and returns of unworn and unwashed garments within 30 days of the date of purchase (14 days during the sales period), on presentation of the original till receipt at any store where the corresponding collection is available within the country of purchase.

        Your return will usually be processed within a week to a week and a half. We’ll send you a Return Notification email to notify you once the return has been completed.
        Please allow 1-3 business days for refunds to be received to the original form of payment once the return has been processed.

        Help

        Give us a shout if you have any other questions and/or concerns.
        Email: [email protected]
        Phone: +1 (23) 456 789

      •  Ask a Question

        UT251A High Sensitivity Leakage Current Clamp Meter

        Ask a Question

          ... people are viewing this right now

          Share
        Guaranteed Safe CheckoutTrust

        UT251 series high-accuracy high sensitivity leakage current clamp meters are designed for testing AC leakage current. These high resolution meters are great for applications such as checking leakage current for motor, home appliances and other electrical equipment up to 600A.

        Applications:
        checking leakage current for motor, home appliances and other electrical equipment up to 600A.
        Features:

        1. 4-digit LCD digital display, 10000 display count

        2. Auto range, 2/s sampling rate
        3. Peaks hold
        4. Store 99 sets of data
        5. RS-232 interface
        6. Data hold
        7. Auto power off
        8. Overload indication, low battery indication

        Specifications:

        SpecificationsRangeUT251A
        Leakage current (A)0.001mA~60A±(1.5% 5)
        Voltage (Freq.) 0V~600V (50Hz/60Hz)√
        Resolution1uA
        Features
        Display4 digits LCD√
        Clamp size25mm x 30mm
        Auto range√
        RS-232√
        Data storage99
        Peak/Data hold√
        Overload protectionOL√
        Auto power off5 minutes√
        Low battery indication≤7.2V
        Over-range displayOL√
        Test modeClamp CT, integral mode√
        General Characterisitics
        Power9V battery (6F22)
        Display32mm x 15mm
        Product colorRed and grey
        Product net weight120g
        Product size175mm x 70mm x 38mm
        Standard accessoriesBattery, RS-232 interface cable, PC software CD
        Standard individual packingGift box, carrying bag, English manual, tool box
        Standard quantity per carton6pcs
        Standard carton measurement385mm x 290mm x 115mm
        Standard carton gross weight3.3kg
