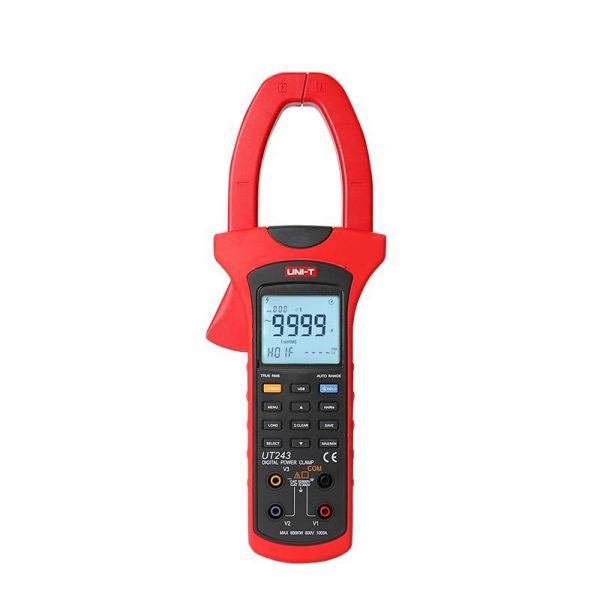

UT243 Power and Harmonics Clamp Meter
UT243 is an intelligent, handheld and stable power and harmonics clamp meter, with functions of digital ammeter and power meter. It can measure voltage, current, active/reactive power, power factor, phase angle and more. UT243 series can measure single harmonic components up to 20 times.
1. True RMS voltage/current measurement
2. 3-phase 3-wire, 3-phase 4-wire and single-phase 2-wire measurements
3. 10000 count LCD dual display
4. Phase sequence detection
5. Max/Min modes
6. Auto range, auto power off, backlight, low battery indication
7. Equipped with USB interface and PC software CD

UT243 Power and Harmonics Clamp Meter
Request a Call Back
- Size Guide
Size Guide
Size Chest Waist Hips XS 34 28 34 S 36 30 36 M 38 32 38 L 40 34 40 XL 42 36 42 2XL 44 38 44 All measurements are in INCHES
and may vary a half inch in either direction.
Size Chest Waist Hips 2XS 32 26 32 XS 34 28 34 S 36 30 36 M 38 32 38 L 40 34 40 XL 42 36 42 All measurements are in INCHES
and may vary a half inch in either direction.
Size Chest Waist Hips XS 34 28 34 S 36 30 36 M 38 32 38 L 40 34 40 XL 42 36 42 2XL 44 38 44 All measurements are in INCHES
and may vary a half inch in either direction.
- Delivery & Return
Delivery
We ship to all 50 states, Washington DC.
All orders are shipped with a UPS tracking number.
Always free shipping for orders over US $200.
During sale periods and promotions the delivery time may be longer than normal.Return
Elessi will accept exchanges and returns of unworn and unwashed garments within 30 days of the date of purchase (14 days during the sales period), on presentation of the original till receipt at any store where the corresponding collection is available within the country of purchase.
Your return will usually be processed within a week to a week and a half. We’ll send you a Return Notification email to notify you once the return has been completed.
Please allow 1-3 business days for refunds to be received to the original form of payment once the return has been processed.Help
Give us a shout if you have any other questions and/or concerns.
Email: [email protected]
Phone: +1 (23) 456 789 - Ask a Question

UT243 Power and Harmonics Clamp Meter
Ask a Question
UT243 is an intelligent, handheld and stable power and harmonics clamp meter, with functions of digital ammeter and power meter. It can measure voltage, current, active/reactive power, power factor, phase angle and more. UT243 series can measure single harmonic components up to 20 times.
1. True RMS voltage/current measurement
2. 3-phase 3-wire, 3-phase 4-wire and single-phase 2-wire measurements
3. 10000 count LCD dual display
4. Phase sequence detection
5. Max/Min modes
6. Auto range, auto power off, backlight, low battery indication
7. Equipped with USB interface and PC software CD
Tech. Specifications:
| Specifications | Range | UT243 |
| AC current (A) | 1000A | ±(2% 5) |
| AC voltage (V) | 600V | ±(1.2% 5) |
| Frequency (Hz) | 40Hz~80Hz | ±(0.5% 5) |
| Active power (W) | 0.01kW~600kW | ±(3% 5) |
| Apparent power (VA) | 0.01kVA~600kVA | ±(3% 5) |
| Reactive power (VAr) | 0.01kVAr~600kVAr | ±(4% 5) |
| Power factor | 0.3~1 | ±0.022 |
| Phase angle (°) | 0°~360° | ±2° |
| Active energy (Wh) | 1kWh~9999kWh | ±(3% 2) |
| Features | ||
| Display count | 10000 | |
| Auto range | √ | |
| Jaw opening | 50mm | |
| True RMS | AC voltage/AC current | √ |
| Auto power off | √ | |
| Low battery indication | √ | |
| Data hold | √ | |
| MAX/MIN | √ | |
| Data storage | 999 | |
| USB interface | √ | |
| LCD backlight | √ | |
| Full icon display | √ | |
| Harmonic analysis | 1~20 | |
| Setup | √ | |
| Single-phase 2-wire | √ | |
| 3-phase 3-wire | √ | |
| 3-phase 4-wire | √ | |
| Phase sequence test | Positive phase, reverse phase, phase deficiency | √ |
| Input impedance for DCV | ≥5MΩ | |
| Input protection | √ | |
| General Characterisitics | ||
| Power | 1.5V battery (R6) x 4 | |
| Display | 46mm x 42mm | |
| Product color | Red and grey | |
| Product net weight | 601g | |
| Product size | 303mm x 112mm x 39mm | |
| Standard accessories | Batteries, test leads, alligator clips, USB interface cable, PC software CD | |
| Standard individual packing | Gift box, English manual, tool box | |
| Standard quantity per carton | 5pcs | |
| Standard carton measurement | 510mm x 375mm x 320mm | |
| Standard carton gross weight | 12.3kg | |
