Features :

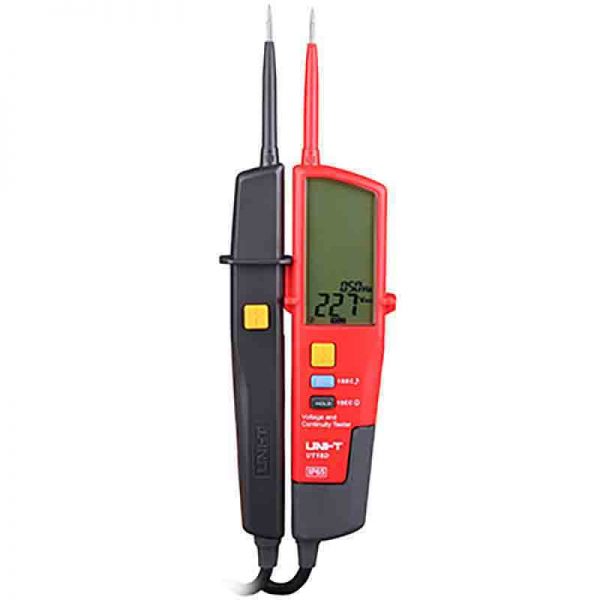

UT18D Voltage and Continuity Tester
UT18 series are designed for testing AC/DC voltage, 3-phase voltage, phase sequence, continuity, and more. This series is categorized as CAT IV 600V and meets IP65 standard. These voltage testers are perfect tools for electricians to quickly measure voltage levels in all environments. This series should NOT be used with 110V electrical systems.
Features:
1. Auto power off, the conductor to be measured is greater than 12V
2. Phase rotation test
3. Continuity test with buzzer and LED indication
4. Low battery indication and over voltage prompt
5. Flashlight
6. Test live voltage without batteries
7. Buzzer and silent modes available
8. Auto range
9. Polarity indication

UT18D Voltage and Continuity Tester
Request a Call Back
- Size Guide
Size Guide
Size Chest Waist Hips XS 34 28 34 S 36 30 36 M 38 32 38 L 40 34 40 XL 42 36 42 2XL 44 38 44 All measurements are in INCHES
and may vary a half inch in either direction.
Size Chest Waist Hips 2XS 32 26 32 XS 34 28 34 S 36 30 36 M 38 32 38 L 40 34 40 XL 42 36 42 All measurements are in INCHES
and may vary a half inch in either direction.
Size Chest Waist Hips XS 34 28 34 S 36 30 36 M 38 32 38 L 40 34 40 XL 42 36 42 2XL 44 38 44 All measurements are in INCHES
and may vary a half inch in either direction.
- Delivery & Return
Delivery
We ship to all 50 states, Washington DC.
All orders are shipped with a UPS tracking number.
Always free shipping for orders over US $200.
During sale periods and promotions the delivery time may be longer than normal.Return
Elessi will accept exchanges and returns of unworn and unwashed garments within 30 days of the date of purchase (14 days during the sales period), on presentation of the original till receipt at any store where the corresponding collection is available within the country of purchase.
Your return will usually be processed within a week to a week and a half. We’ll send you a Return Notification email to notify you once the return has been completed.
Please allow 1-3 business days for refunds to be received to the original form of payment once the return has been processed.Help
Give us a shout if you have any other questions and/or concerns.
Email: [email protected]
Phone: +1 (23) 456 789 - Ask a Question

UT18D Voltage and Continuity Tester
Ask a Question
UT18D Voltage and Continuity Tester
UT18 series are designed for testing AC/DC voltage, 3-phase voltage, phase sequence, continuity, and more. This series is categorized as CAT IV 600V and meets IP65 standard. These voltage testers are perfect tools for electricians to quickly measure voltage levels in all environments. This series should NOT be used with 110V electrical systems.
Features:
1. Auto power off, the conductor to be measured is greater than 12V
2. Phase rotation test
3. Continuity test with buzzer and LED indication
4. Low battery indication and over voltage prompt
5. Flashlight
6. Test live voltage without batteries
7. Buzzer and silent modes available
8. Auto range
9. Polarity indication
Tech. Specifications:
| Specifications | Range | UT18D |
| Voltage (V) | 6V | 5V±1V |
| 12V | 8V±1V | |
| 24V | 18V±2V | |
| 50V | 38V±4V | |
| 120V | 94V±8V | |
| 230V | 180V±14V | |
| 400V | 325V±15V | |
| 690V | 562V±24V | |
| Phase rotation test | 57V.½,¾400Vac (3 phase) | |
| Frequency: 50Hz-400Hz | ||
| Single lead (L2) voltage detection | Operating voltage: 100V~690V | |
| Frequency: 50Hz~400Hz | ||
| Continuity test | Resistance: ( 50% accuracy) | |
| Beeper and LED light indication | ||
| RCD test | Operating voltage: 230V (50Hz~400Hz) | |
| Polarity detection | Positive & Negative | |
| Self-inspection | All LED or LCD | |
| Features | ||
| Voltage indication | LCD | |
| Exceed voltage | Voltage range: 713V~788V | |
| Auto standby | Standby current¼10¼A | |
| Silent mode | All range | |
| Work light | ||
| Low battery indication | Around 2.5V | |
| LCD backlight | ||
| LCD display (voltage) | 6V~690V | ±(1.5% 5) |
| LCD display (Frequency) | 40Hz~400Hz | ±(3% 5) |
| IP65 | ||
| General Characteristics | ||
| Power | 1.5V battery (R03) | |
| Display | 73.5mm x 35.5mm | |
| Product color | Red and grey | |
| Product net weight | 280g | |
| Product size (W x H x D) | 272mm x 85mm x 31mm | |
| Standard accessories | Batteries | |
| Standard individual packing | Blister, English manual | |
| Standard quantity per carton | 30pcs | |
| Standard carton measurement | 440mm x 295mm x 455mm | |
| Standard carton gross weight | 17.5kg | |
