Features :

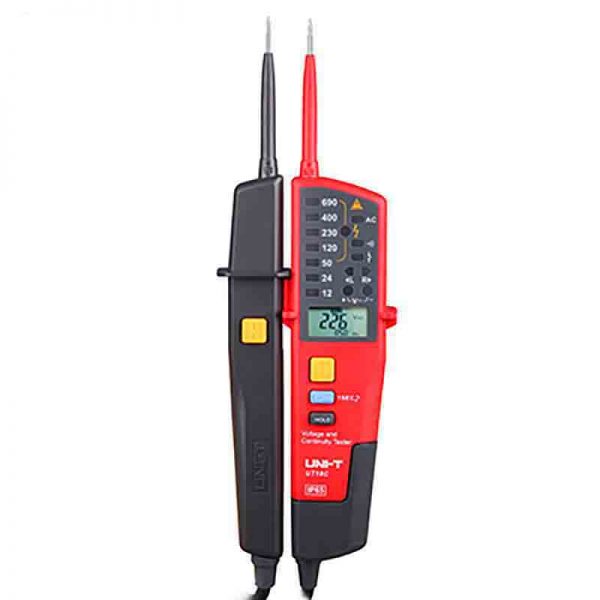

UT18C Voltage and Continuity Tester
UT18 series are designed for testing AC/DC voltage, 3-phase voltage, phase sequence, continuity, and more. This series is categorized as CAT IV 600V and meets IP65 standard. These voltage testers are perfect tools for electricians to quickly measure voltage levels in all environments. This series should NOT be used with 110V electrical systems.
2. Phase rotation test

UT18C Voltage and Continuity Tester
Request a Call Back
- Size Guide
Size Guide
Size Chest Waist Hips XS 34 28 34 S 36 30 36 M 38 32 38 L 40 34 40 XL 42 36 42 2XL 44 38 44 All measurements are in INCHES
and may vary a half inch in either direction.
Size Chest Waist Hips 2XS 32 26 32 XS 34 28 34 S 36 30 36 M 38 32 38 L 40 34 40 XL 42 36 42 All measurements are in INCHES
and may vary a half inch in either direction.
Size Chest Waist Hips XS 34 28 34 S 36 30 36 M 38 32 38 L 40 34 40 XL 42 36 42 2XL 44 38 44 All measurements are in INCHES
and may vary a half inch in either direction.
- Delivery & Return
Delivery
We ship to all 50 states, Washington DC.
All orders are shipped with a UPS tracking number.
Always free shipping for orders over US $200.
During sale periods and promotions the delivery time may be longer than normal.Return
Elessi will accept exchanges and returns of unworn and unwashed garments within 30 days of the date of purchase (14 days during the sales period), on presentation of the original till receipt at any store where the corresponding collection is available within the country of purchase.
Your return will usually be processed within a week to a week and a half. We’ll send you a Return Notification email to notify you once the return has been completed.
Please allow 1-3 business days for refunds to be received to the original form of payment once the return has been processed.Help
Give us a shout if you have any other questions and/or concerns.
Email: [email protected]
Phone: +1 (23) 456 789 - Ask a Question

UT18C Voltage and Continuity Tester
Ask a Question
UT18C Voltage and Continuity Tester
UT18 series are designed for testing AC/DC voltage, 3-phase voltage, phase sequence, continuity, and more. This series is categorized as CAT IV 600V and meets IP65 standard. These voltage testers are perfect tools for electricians to quickly measure voltage levels in all environments. This series should NOT be used with 110V electrical systems.
2. Phase rotation test
| Specifications | Range | UT18C |
| Voltage (V) | 12V | 8V±1V |
| 24V | 18V±2V | |
| 50V | 38V±4V | |
| 120V | 94V±8V | |
| 230V | 180V±14V | |
| 400V | 325V±15V | |
| 690V | 562V±24V | |
| Phase rotation test | 57Vac½,¾400Vac (3 phase) | |
| Frequency: 50Hz~400Hz | ||
| Single lead (L2) voltage detection | Operating voltage: 100V~690V | |
| Frequency: 50Hz~400Hz | ||
| Continuity test | Resistance: 100k ( 50% accuracy) | |
| Beeper and LED light indication | ||
| RCD test | Operating voltage: 230V (50Hz~400Hz) | |
| Polarity detection | Positive & Negative | |
| Self-inspection | All LED or LCD | |
| No power test | Operating voltage: 100~690V | |
| Features | ||
| Voltage indication | LED | |
| Exceed voltage | Voltage range: 713V~788V | |
| Auto standby | Standby current“10,¼A | |
| Silent mode | All range | |
| Work light | ||
| Low battery indication | Around 2.5V | |
| LCD display (voltage) | 6V~690V | ±(1.5% 5) |
| LCD display (Frequency) | 40Hz~400Hz | ±(3% 5) |
| IP65 | ||
| General Characteristics | ||
| Power | 1.5V battery (R03)2 | |
| Display | UT18C: 31mm x 20mm; UT18D: 73.5mm x 35.5mm | |
| Product color | Red and grey | |
| Product net weight | 280g | |
| Product size (W x H x D) | 272mm x 85mm x 31mm | |
| Standard accessories | Batteries | |
| Standard individual packing | Blister, English manual | |
| Standard quantity per carton | 30pcs | |
| Standard carton measurement | 440mm x 295mm x 455mm | |
| Standard carton gross weight | 17.5kg | |
Based on 0 reviews
| 0% | ||
| 0% | ||
| 0% | ||
| 0% | ||
| 0% |
- Alpha Trade Bangladesh
- alpha trade bd
- Audio Visual
- Bangladesh.
- BD.
- Cable Lockout
- Circuit Breaker Lockout
- Dhaka
- Digital Multimeter in Bangladesh
- Electrical Lockout
- Electrical Power Testers
- Environmental Testers
- eye safety
- Eye Wash in bangladesh
- Eye Wash Station
- Eye Wash Station Bangladesh
- Fall Arrester
- Fall Arrester Harness
- Fall Arrest System
- Fall Protection System
- HEARING PROTECTION
- Industrial Clamp Meter
- industrial digital multimeters
- industrial grade multimeters
- Industrial Meters
- Infrared Thermometer in Bangladesh
- Lockout HASP
- Lockout Station & Others
- Lockout Tag
- Lockout Tagout (LOTO)
- Lockout Tagout(LOTO) Supplier in Bangladesh
- Lockout Tagout Procedure
- Loto Lockout Station BD
- Portable Eye Wash Station BD
- Portable Eye Wash Station in Bangladesh
- Respirator Mask in Bangladesh
- Respirator masks
- Respiratory protection
- Road Safety
- Safety Padlock
- Safety Shoe Supplier in Bangladesh
- Safety Spectacle
- Security Metal Detector
- Thermal Imager
- Valve Lockout
Related Products
Features:
* Measurement Range: 30℃ ~45℃(℃ and ℉ switch)
* Accuracy: ±0.5℃ (1m)
* Temperature Alarm: High/Low Temperature
* Image Mode: Thermal Image, Visible Light Image, Blending Image
* Contactless Measuring: 15cm-100CM
* Realtime Monitoring and tracking from PC
* Taking photo and save to SD card
* PC Software analysis and report output
* Tripod mounting hole(1/4 inch)
UT300 series infrared thermometers are lightweight and small. Objects can be quickly and accurately measured from a distance with 0.1°C resolution. These devices consume very little power, suitable for indoor and outdoor use.
Features:
1. Dual display (real-time/MAX, real-time/MIN)
2.options
3. LCD backlight
4. Auto power off
5. Low battery indication
6. Auto data hold
7. Optional (on/off) laser pointer

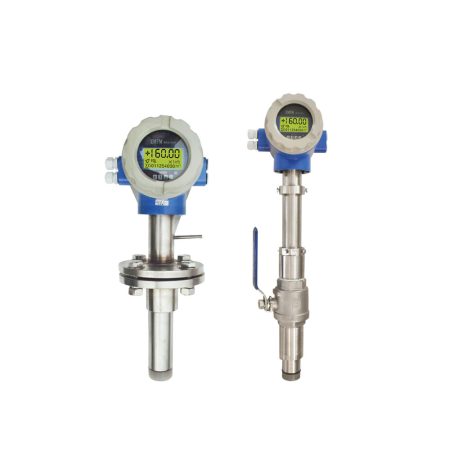

Medium: Water
Standard measure temperature: 20~80
Accuracy: A±0.5%
Liner material: PTFE
Electrode material: SS 316L
Body & Flange: Carbon steel
Flange type: ANSI150#
Coil material: Copper
Installation: Separate display
Output Signal: 4-20mA, Pulse, RS485
Power supply: AC220/DC24V
Normal pressure:1.6Mpa
UT310 series handheld vibration testers can measure displacement, velocity, and acceleration of rotating and reciprocating machinery. Technicians can use these to monitor equipment status and ensure normal operation.
Features
- Highly accurate and precise
- Measures acceleration, velocity, displacement
- Can select different vibration frequency characteristics
- Auto power off, low battery indication
- Data hold

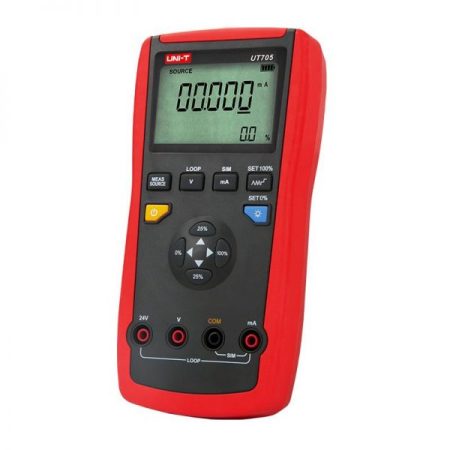

UT705 is a high performance device for loop calibration and maintenance. Designed with high-accuracy DC current and transmitter analog current outputs, UT705 has DC voltage/current and loop current measurement functions with button settings, selectable steps and ramp outputs to help user work more efficiently and accurately. It features LCD backlight, auto power off and 1m drop proof.
Features:
1. Measures: DC voltage, DC current, 4-20mA loop current
2. Output functions: DC current, analog transmitter, 24V loop
3. Up to 0.02% accuracy current measurement at the same time
4. Automatic ramp for DC current output
5. Manual stepping and automatic stepping and ramping output
6. Stores and recalls setups

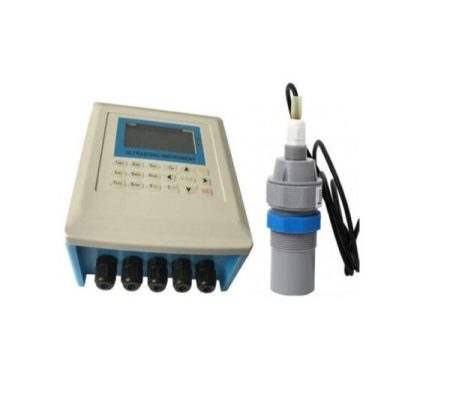

Category:Flow Meter
Tags: Type of flow instrument that is used to indicate the amount of liquid, gas, or vapor moving through a pipe or conduit by measuring linear, non-linear, mass, or volumetric flow rates.Flow meter for drainage, flow meter supplier in Bangladesh,
UT309 series professional infrared thermometer can determine surface temperature through the energy radiated by the target surface. It is designed to meet some of the highest protection ratings in UNI-TÃ product line, IP65 and 3m drop proof. With a rapid response rate of 250ms, high measurement accuracy, and multiple scanning modes, UT309 proves to be a necessary tool for engineers and technicians working in a various elds such as electrical distribution inspection, HVACR maintenance, transportation equipment inspection, instrument repair, and many more.
Features:
1. 3m drop proof, IP65
2. Large LED display with backlight
3. MAX/MIN/AVG/DIF mode
4. High/Low temperature alarm with LED indication
5. Lock measurement
6. Data hold/auto power off

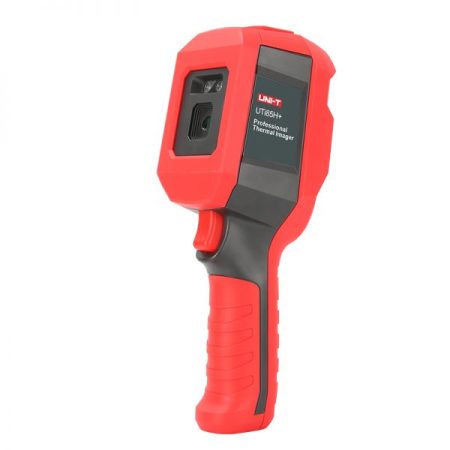

Features:
