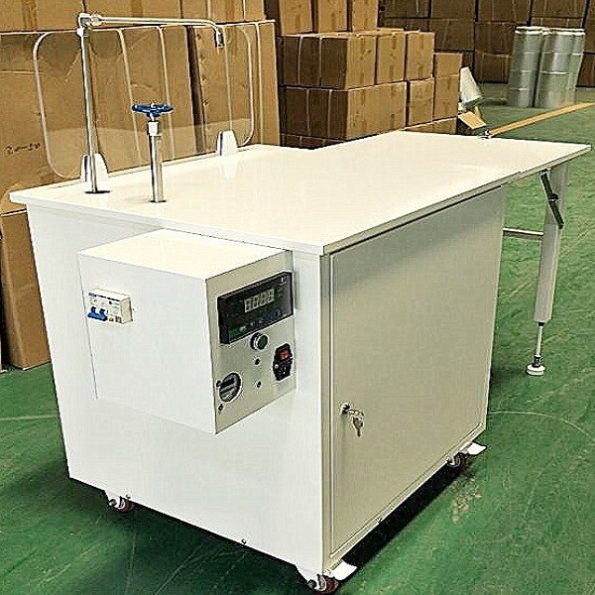

Liquid Nitrogen Ice Cream Machine

Liquid Nitrogen Ice Cream Machine

PRODUCT FEATURES

Electric booster system, by the control instrument to achieve boosting and pressure stabilization, control the internal pressure in the ultra-low pressure range, safe and reliable;

The liquid level display and alarm functions are complete, which is convenient for real-time monitoring of the liquid level;

High vacuum multi-layer insulation technology can reduce liquid nitrogen consumption, save energy and protect environment;

Foldable operation platform to reduce occupancy space;

The chassis is clean and beautiful with plastic spraying technology.

Delicious Entry, Healthy Nutrition

The instantly lowered temperature of liquid nitrogen can make the raw material crystallize quickly, the ice crystal is fine and uniform, and the taste is soft and delicate. At the same time, the raw material of ice cream is surrounded by nitrogen during freezing process, which reduces the contact with air, so it does not occur oxidative discoloration and fatty acid deterioration, and better maintains the original freshness, color, fragrance and nutritional value of ice cream.

Quality safety

Man-machine interface system can automatically pressurize and constant pressure to make ice cream high-quality and efficient; drainage switch, low liquid level alarm, liquid level pressure display, so that the operation is safer and more convenient.

Good molding and high output

Ice cream produced by liquid nitrogen impregnation has a smooth and smooth surface due to the extremely low temperature of liquid nitrogen freezing. It does not produce melting, bonding, surface cracking, shedding and other phenomena. It tastes better. One liter of liquid nitrogen can produce 10 ice cream.

User friendly design

The whole machine has high cost performance, small floor area, convenient movement and strong wear resistance with high quality universal casters, foldable platform, integrated design, convenient reception and thorough removal of sanitary dead angle.

Parameters

1. L*W*Hï¼940*690*1140mm¼ˆFold size¼‰

1550*690*1140mm¼ˆUnfold table size¼‰

2.Packing Size: 1100*800*1400mm (Wooden Box)

3.Net Weight: 110Kg, Gross Weight: 160Kg

4.Working Pressure:¼œ0.1MPa

¼ˆNormal Control 0.025MPa¼‰

5.Low level Alarm: lower 50mm

6.Liquid Nitrogen Container Materials¼06Cr19Ni10

7.Box Material¼Q235¼ High temperature spray treatment for inner and external surface)

8.Liquid Nitrogen Container Rehydration Port Thread Specification: UNF3/4 External Thread

9.Power Source¼ACÂ 110V or 220V

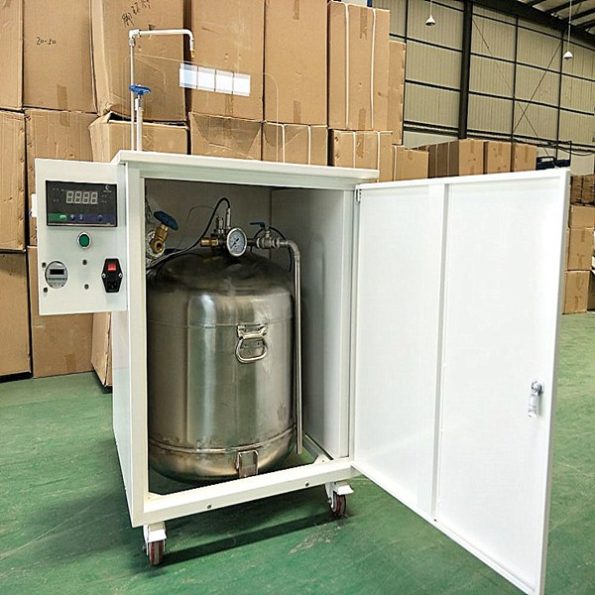

10.Stainless Steel Liquid Nitrogen Container¼50 Liters Capacity

11.Liquid Nitrogen Container Insulation Form¼ High Vacuum Multilayer Insulation
