Laboratory Fume Hood Exhaust – Ceiling fume extraction arm – Universal Fume Extraction Hood

Laboratory fume hoods are designed to protect the worker by containing and exhausting harmful or toxic fumes, gases. We are leading supplier of laboratory fume exhaust hoods, ceiling fume extraction arm, And universal fume extraction hood in Bangladesh.

Our Extractor Arm Fume Hoods are primarily used for local fumes, odors and air streams. Most labs use a 2″, 3″ or 4″ diameter arm. The size of the arm is determined by the airflow that you need.

Our extractor arms feature a versatile bench, ceiling or wall mounting capability so you can place the arm where it suits you best. From self-assembly kits to tailor-made solutions, our arms are available in self assembly kits, which include a fan and filter, a fan speed controller, hoses, table bracket and connectors. The kit provides a quick and convenient solution for creating a fume-free workplace.

Ceiling Mounted Fume Arm / Table Mounted Fume Arm / Wall Mounted Fume Arm

Specifications:

Applications:

Ideal for removing soldering exhaust, solvent fumes, laboratory vapors, and other harmful gases in repair shops, educational facilities, arts studios, salons, and pharmaceutical, manufacturing, and research facilities. electronic industry, soldering, laboratory, beauty salon, metal processing workshop, jewelry processing workshops, schools, factories chemical laboratory, mechanical processing workshop.

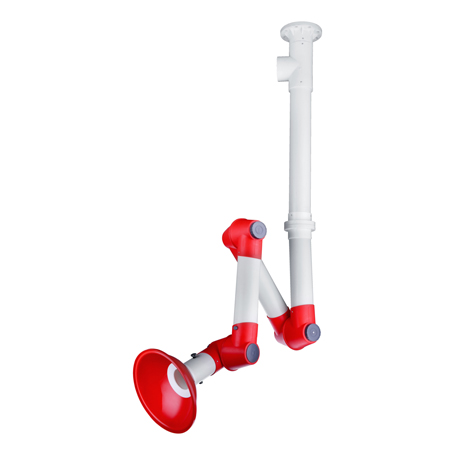

Fume flexible extraction arms:

• Body material: chemical resistant polypropylene; 3 arms joints ceiling mounted system;
• Hood diameter: 385mm
• Air suction volume: 140-400m3/h(80-235CFM)
• Maximum arm extension: 2630mm

Mounting Instructions:

Ceiling cover plate for mounting FX Arm through an inner ceiling

1. Remove a required number of inner ceiling plates.

2. Fasten the bracket against the upper ceiling. Ensure that the surface, on which to mount the bracket is level and use the bracket to mark the holes. Use vibration secured fixing bolts and nuts suitable for the ceiling material. The bolts must each stand a torque force of minimum 7500 N (1650 lbs.).

3. If necessary, cut the extension arm to a suitable length.

4. Fit the extension arm to the bracket.

5. Make a hole in the affected inner ceiling plate. Hole diameter; 200 mm. N.B. The ceiling plate must not be divided.

6. Refit the lower ceiling plate.

7. Choose a stamped disc on the ceiling cover plate suiting the ventilation duct. Fold it to and for until it comes loose. Support the discs that are not required to be removed.

8. Fasten the ceiling cover plate. Press it against the inner ceiling.

9. Mount a suitable ventilation duct.

10.Multiple joints new type of movable arm, can connect to single or multiple joints according to the actual Conditions.

Call On our Hotline Or Contact Us to Get High Quality Laboratory Fume Hood Exhausts, Ceiling fume extraction arm, Universal Fume Extraction Hood.
